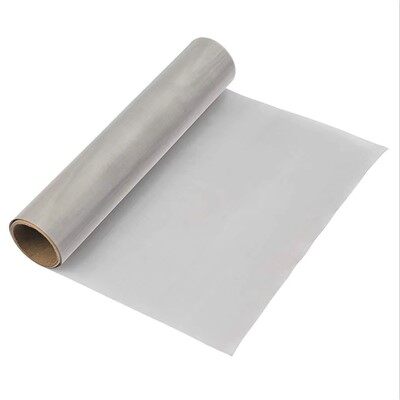

Stainless Steel Mesh Screen Roll

Stainless Steel Mesh Screen Roll

Product Name: Stainless Steel Mesh Screen Roll
Material: 304, 304L, 316, 316L, 321, 310S, 904L
Weave Type: Plain Weave, Twill Weave, Dutch Weave
Wire Diameter: 0.01–2.03 mm
Mesh Count: 1–400 Mesh (Customizable)
Filtration Rating: 1–400 Micron (Depending on Mesh Count)
Hole Shape: Square / Rectangular
Roll Width: 0.914 m, 1 m, 1.2 m, 1.5 m, 1.8 m, 2 m, 4 m, etc.
Roll Length: 10 m, 20 m, 30 m or Customized
Customization: Cutting, punching, welding, multilayer lamination, OEM filter components
Sample: Can Be Offered
Send Inquiry
Description
Technical Parameters

Stainless steel mesh screen rolls are well suited to continuous cutting, slitting, die-cutting, and automated production thanks to their excellent mechanical strength and flexibility. Compared with sheets, rolls require more attention to roll width, roll length, core type, number of joints, winding tension, and edge protection - any unstable factor in these areas can cause production line downtime and material waste.



CHG Metal can supply mesh rolls in materials such as 304, 316, and 316L, with different mesh counts, apertures, and roll widths, and can slit to your equipment's width. When purchasing, please specify the application, roll width, roll length, core type, joints, edge condition, and packaging first, so we can quickly put together a custom solution for you.





Mesh Count vs Filtration Rating



Mesh Count Wire Diameter (mm) Opening Size (mm) Approx. Filtration (µm)
40 Mesh 0.21 0.42 350–400
60 Mesh 0.16 0.26 250–300
80 Mesh 0.14 0.17 180–200
100 Mesh 0.10 0.15 130–150
150 Mesh 0.065 0.10 80–100
200 Mesh 0.053 0.07 60–70
300 Mesh 0.035 0.05 25–40



Weave Type Comparison



Weave Type Structural Feature Filtration Precision Typical Application
Plain Weave Balanced structure Medium General filtration
Twill Weave Dense and stable High Fine filtration
Dutch Weave High density warp Very High Precision filtration



Industry Application Guide



Industry Recommended Mesh Material Grade Key Benefit
Hydraulic Oil 100–200 Mesh 316L High pressure resistance
Fuel Filtration 120–250 Mesh 316L Stable micron control
Water Treatment 80–150 Mesh 304 / 316 Cost-effective
Chemical Processing 150–300 Mesh 316L / 904L Corrosion resistance
Food & Beverage 80–200 Mesh 304 / 316L Food Grade Hygienic & reusable



Stainless Steel Wire Mesh   48x150 Inch Mesh Roll 304 Stainless Steel Mesh Screen 48x150 Inch - 60 Mesh  Rust Proof Wire Roll 304 Stainless Steel Screen Roll

 stainless steel mesh screen roll manufacturer

Mesh and Alloy Selection



Plain weave suits general screening, twill supports high mesh counts and Dutch weave provides fine filtration channels. 304 is common for general service; 316/316L for chlorides and chemicals.



CHG Metal can supply rolls or slit coils and record width, length, joint and packing details.



A fine mesh screen roll and a 304 screen mesh roll can be supplied to a custom cut screen roll width. State the core, roll length, joint limit and edge condition for continuous production.



Screen Roll Inspection



Checks cover mesh, wire, aperture, width, length, winding, edge, joint, surface and packing. Slit coils add width tolerance and burr inspection.



Joint limits, core, roll weight, labels and batch records can be specified.



FAQ

Q: Can screen rolls be slit to width?

A: Yes. Provide target width, number of slits, core and length.

Q: Are joints allowed?

A: The maximum number and location can be specified for each roll.

Q: How is fine mesh protected in transit?

A: Interleaving, controlled winding, moisture protection and edge protection are used.

Request a Quote



Send the screen roll alloy, mesh or aperture, wire, width, length, core, joint limit, edge and quantity to CHG Metal for a quotation.
