Product Description

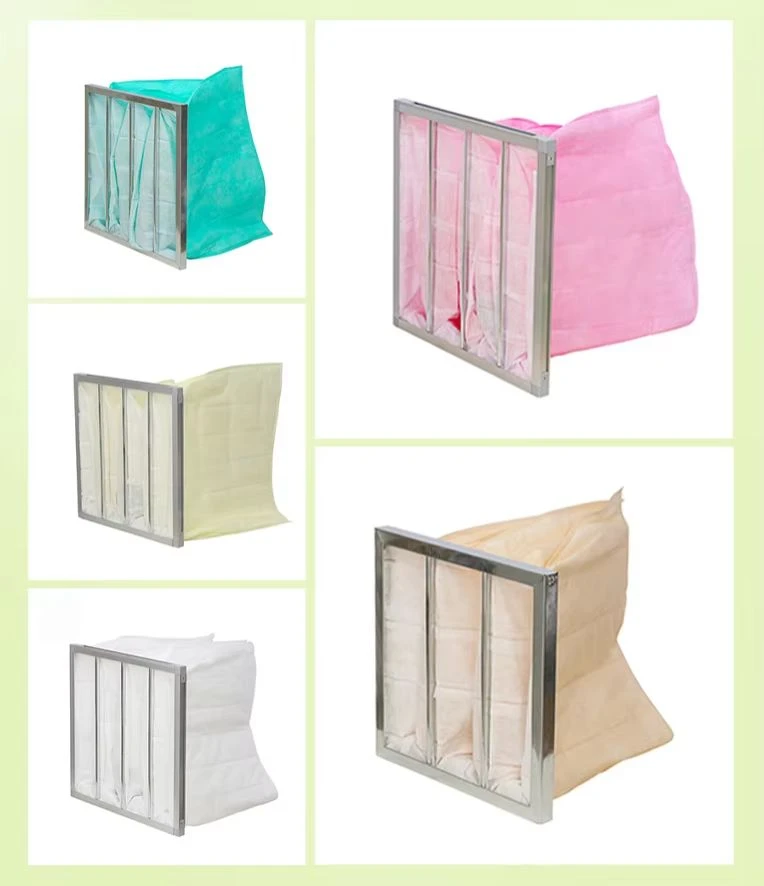

Our Synthetic Bag Filter is engineered for high-performance air filtration, utilizing advanced multi-layer synthetic media to ensure superior dust-holding capacity and low pressure drop. Featuring a progressive density melt-blown structure, it provides deep-bed filtration that significantly extends service life while maintaining optimal airflow for HVAC and industrial systems. With its moisture-resistant properties and ultrasonic seamless welding, this filter delivers a leak-proof, high-strength solution designed to reduce energy costs and protect downstream equipment in demanding environments.
Product Features
● Superior Dust Holding Capacity: The multi-pocket structure and progressive density media allow for deep-bed filtration, extending the filter's service life and reducing replacement frequency.
● Low Energy Consumption: Aerodynamic pocket design ensures uniform airflow and minimal initial resistance, lowering the load on fan motors and saving energy costs.
● High Structural Integrity: Utilizing ultrasonic seamless welding technology, our pockets are leak-proof and remain stable even under high-volume airflows.
● Moisture & Chemical Resistance: Synthetic fibers are naturally resistant to humidity and various chemical vapors, preventing the growth of microbes and mold.
● Environmentally Friendly: 100% synthetic materials are non-toxic, non-shedding, and fully incinerable for safe and easy disposal.
Product Applications
● Commercial HVAC Systems: Essential for air purification in hospitals, airports, office buildings, and shopping malls.
● Industrial Pre-filtration: Used as a reliable pre-filter to protect expensive HEPA filters in cleanrooms and pharmaceutical plants.
● Automotive Industry: Air intake and exhaust filtration for professional paint spray booths and assembly lines.
● Power Generation: High-capacity air intake filtration for gas turbines and large-scale compressors.
● Food & Beverage Processing: Maintaining hygienic air standards in food production and packaging environments.
SPECIFICATION
| FiltrationGrade | Dimensions(mm)(W*H*D) | No. Of bags | FiltrationArea(m') | Rated AirVolume | I.N.P(Pa) | F.N.P(Pa)Recommended |
| 35%(G4) | 595*595*600 |
4
8 |
2.85
5.71 |
1800
3600 |
40
45 |
350 |
| 45%(F5) | 595*595*600 |
4
8 |
2.85
5.71 |
1800
3600 |
45
50 |
350 |
| 65%(F6) | 595*595*600 |
4
8 |
2.85
5.71 |
1800
3600 |
50
65 |
400 |
| 85%(F7) | 595*595*600 |
4
8 |
2.85
5.71 |
1800
3600 |
65
75 |
400 |
| 90%(F8) | 595*595*600 |
4
8 |
2.85
5.71 |
1800
3600 |
75
85 |
400 |
| 95%(F9) | 595*595*600 |
4
8 |
2.85
5.71 |
1800
3600 |
85
95 |
400 |
Product Paramenters
|
Filter level |
Size(mm)(W*H*D) |
No.Of bags |
Filter area(㎡) |
Air volume (m³/h) |
Initial resistance(Pa) |
|
45%(F5) |
595*595*600 |
3/6 |
2.2/4.4 |
1250/1700/2100 2550/3400/4250 |
45/55/75
|
|
65%(F6) |
595*595*600 |
3/6 |
2.2/4.4 |
1250/1700/2100 2550/3400/4250 |
50/60/80 |
|
85%(F7) |
595*595*600 |
3/6 |
2.2/4.4 |
1250/1700/2100 2550/3400/4250 |
58/70/105 |
|
90%(F8) |
595*595*600 |
3/6 |
2.2/4.4 |
1250/1700/2100 2550/3400/4250 |
67/90/115 |
|
95%(F9) |
595*595*600 |
3/6 |
2.5/5.0 |
1250/1800/2500 2550/3600/5000 |
75/127/216 |
Why Choose Our Synthetic Bag Filters?
We combine state-of-the-art manufacturing with rigorous quality control to deliver filtration solutions that meet international standards (ISO/ASHRAE). Whether you need a standard size for a commercial building or a customized solution for a specialized industrial process, our team is ready to provide technical support and high-performance products that guarantee cleaner air.
