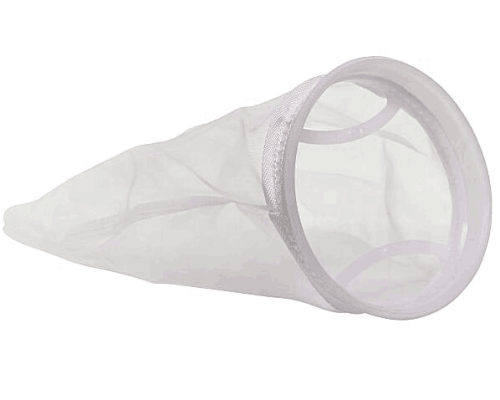

Nylon Filter Bag – High-Performance Filtration for Demanding Industrial Applications
At CHG METAL, we design filtration solutions that help industries run cleaner, safer, and more efficiently. Our Nylon Filter Bags are engineered for exceptional durability and consistent filtration performance, making them one of the most reliable and cost-effective options for liquid and dust filtration across a wide range of sectors.
Crafted from premium monofilament or multifilament nylon mesh, each filter bag offers excellent tensile strength and resistance to abrasion, allowing it to maintain structural integrity even under high-flow or high-viscosity conditions. Nylon is naturally resistant to a broad spectrum of chemicals, making it suitable for filtration applications in water treatment, chemicals, paints, coatings, adhesives, food processing, electronics manufacturing, and more.
What sets our Nylon Filter Bags apart is their precise micron rating control, available from 1 micron to 800 microns. This ensures accurate particle capture and stable filtration efficiency throughout the bag's service life. The mesh construction promotes superior flow rate, low pressure drop, and easy cleaning-offering extended reusability and lower operational costs.
To enhance compatibility with different filtration systems, CHG METAL offers a full range of ring options, including stainless steel rings, galvanized steel rings, and PP/PE molded rings. Each bag is produced with meticulous edge sealing to prevent bypass, ensuring you get clean, reliable filtration in every cycle.
Key Advantages
1.High mechanical strength and excellent abrasion resistance
2.Wide chemical compatibility for diverse industrial liquids
3.Accurate micron ratings for dependable particle retention
4.Smooth mesh surface for easy cleaning and reuse
5.High flow capacity and low pressure drop
6.Custom sizes and ring types available
Whether you're upgrading your filtration system or looking for a dependable supplier, CHG METAL's Nylon Filter Bags deliver the balance of performance, longevity, and value you need. Contact us today to request samples, specifications, or a customized solution tailored to your production line.
📏 Nylon Filter Bag Size Specifications
Standard Industrial Sizes
| Bag Size | Diameter | Length | Filter Area | Volume | Micron Rating |
|---|---|---|---|---|---|
| #1 | 7" (180 mm) | 16" (410 mm) | 2.0 ft² (0.19 m²) | 8 L | 1–800 μm |
| #2 | 7" (180 mm) | 32" (810 mm) | 4.1 ft² (0.38 m²) | 17 L | 1–800 μm |
| #3 | 4" (102 mm) | 8" (210 mm) | 0.8 ft² (0.07 m²) | 1.2 L | 1–800 μm |
| #4 | 4" (102 mm) | 14" (356 mm) | 1.4 ft² (0.13 m²) | 2.5 L | 1–800 μm |
| #5 (Extended) | 7" (180 mm) | 42" (1060 mm) | 5.4 ft² (0.50 m²) | 22 L | 1–800 μm |
| #6 (Extended) | 7" (180 mm) | 48" (1220 mm) | 6.2 ft² (0.58 m²) | 25 L | 1–800 μm |
Custom OEM/ODM Options
| Custom Range | Specification |
|---|---|
| Diameter | 50–500 mm |
| Length | 100–2000 mm |
| Micron Rating | 1–1500 μm |
| Shapes | Round / Square / Cone / Envelope |
| Ring Options | SS304, SS316, Galvanized, PP, PE |
| Mesh Type | Monofilament / Multifilament |
| Color | White, Black, Transparent |
