High-Precision Circular Disc Filter Leaves

High-Precision Circular Disc Filter Leaves

Product Name: High-Precision Circular Disc Filter Leaves
Product Structure: Circular multi-layer wire mesh filter leaf elements with a reinforced metal perimeter and central mounting interface.
Material Options: Stainless steel 304, 316L and 904L, selected according to process fluid and operating conditions.
Filtration Options: Customized mesh combinations and nominal micron ratings to meet different solid-liquid separation requirements.
Center Interface: Custom-machined central flange or hub designed to match the equipment shaft, mounting structure and filtrate outlet connection.
Customization: Diameter, overall thickness, mesh layer configuration, flange dimensions, edge closure and sealing details can be specified according to drawings or equipment requirements.
Typical Applications: Horizontal disc filtration, specialized Nutsche filtration systems and compatible pressure filtration equipment.
Send Inquiry
Description
Technical Parameters

CHG's High-Precision Circular Disc Filter Leaves are highly engineered multi-layer metal filtration elements, designed specifically for horizontal disc filters, specialized Nutsche filters, and vertical pressure reactors.



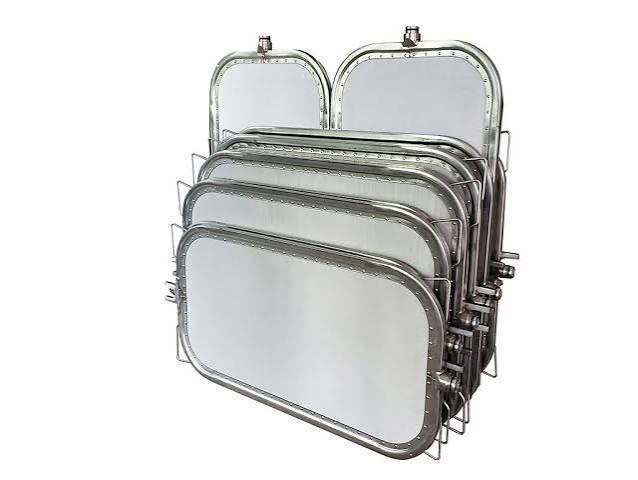

The element uses a perfectly balanced circular geometry instead of the traditional rectangular profile, with a large-gauge, smooth U-shaped metal rim around the perimeter. This rim is hydraulically crimped onto the multi-layer wire mesh and continuously secured by micro-welding. This continuous edge design provides isotropic pressure distribution - meaning internal hydraulic stress is evenly distributed around the entire circumference, completely eliminating the localized corner stress that typically distorts rectangular panels.

High-Precision Circular Disc Filter Leaves

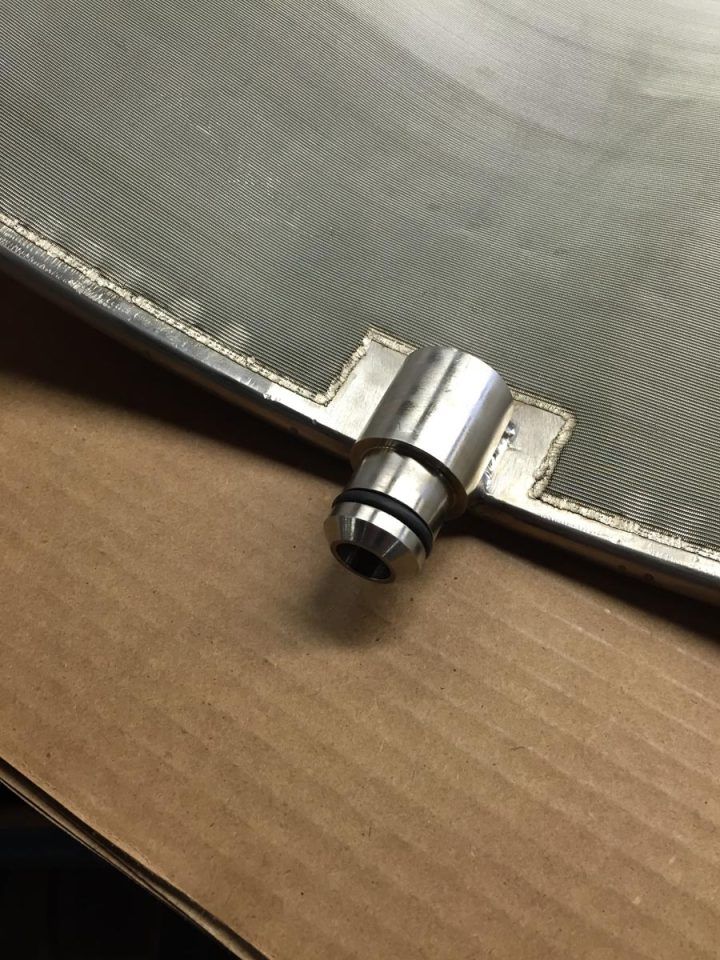

detail of High-Precision Circular Disc Filter Leaves
High-Precision Circular Disc Filter Leaves manufacturer



High-Precision Design



High-precision circular disc filter leaves require tight control over the circular profile, center position, thickness, flatness, and mesh layer fixing at the same time. During installation, the disc relies on the center flange and perimeter seal to fit together, and dimensional deviation can affect assembly and increase bypass risk.



Our mesh layers come in 15μm, 25μm, 40μm, 70μm, and 80μm ratings, and the wire diameter can also be customized to match your process hydraulic targets.

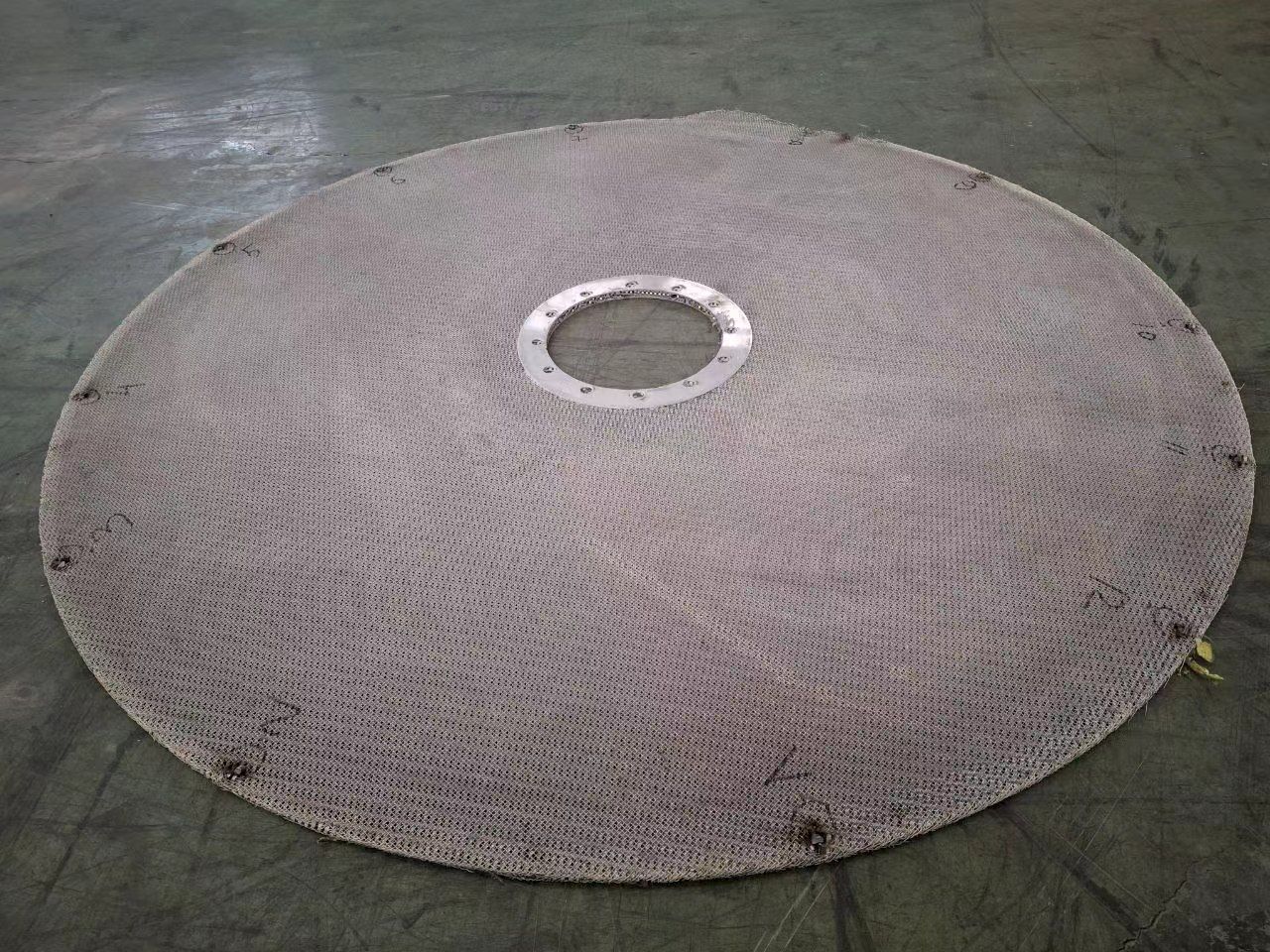

Central Flange and Mounting Interface



The center flange is used to mount the disc onto the center shaft, hub, or support structure. The hub here serves a dual purpose: it acts as a high-strength physical anchor that locks the disc onto the central rotating or fixed shaft, and it also serves as the central collection channel where clarified filtrate from all 360 degrees of the panel converges before dropping into the main outlet pipe.



CHG's central flange is machined from solid stainless steel forgings, ensuring absolutely zero bypass leakage at this critical shaft mounting connection.



Technical Specifications and Customization



Parameter Standard Specification / Engineering Limit
Available Diameters Φ400 mm, Φ600 mm, Φ800 mm, Φ1000 mm,Φ1200 mm, Φ1500 mm
Central Flange ID / OD Custom-machined to match your equipment central shaft manifold
Flange Locking Mechanism Multi-bolt circle pattern, wedge-lock keyways, or compression seal seats
Mesh Configurations 3-Layer standard, 5-Layer heavy-duty, 7-Layer ultra-rigid
Surface Topography Mirror-smooth Dutch weave to facilitate zero-residual cake scraping
Max. Differential Pressure Up to 6.0 bar (0.6 MPa) backpressure threshold



Manufacturing, Quality Inspection



CHG's High-Precision Circular Disc Filter Leaves are suitable for horizontal disc filtration, specialized Nutsche equipment, pressure reactors, or customer-specific circular mounting structures. You can provide details such as outer diameter, inner diameter, thickness, concentricity, flatness, and center flange dimensions, and we can deliver a customized solution. What CHG's products can achieve:



  • Isotropic Stress Resistance: The rounded geometry eliminates weak corners. Under high-pressure spikes, the entire disc flexes uniformly, preventing wire stretching and keeping your nominal micron rating consistent.



  • Precision CNC Machined Fluid Hubs: Our central flanges are turned from solid stainless steel forging stock, guaranteeing absolute zero bypass leaks at the critical shaft mounting junction.



  • Optimized for Scraper & Centrifugal Discharge: The ultra-flat surface and continuous rim weld prevent scraper blades from catching or tearing the wire mesh during automated cake removal cycles.



Related Products and CTA



Please provide the disc drawing, center flange dimensions, filtration rating, material, sealing structure, and equipment interface, and we'll put together a specific custom solution for you.



 Request a Quote



How To Cooperate With Us?

Simply send us your drawings or technical specifications-we specialize in fully customized manufacturing to perfectly match your filtration requirements.
